Systems Design Division

Specializes in ventilation systems, Heat extraction systems, Fume Extraction system, Dust collection system, Cyclone separators, Kitchen Exhaust system, Paint booths, etc.

We undertake turnkey projects.

We offer customized solution to bring down factory/ work area temperature and create a pleasant working environment

Heat Extraction Systems

Here We design, fabricate and install exhaust systems as per our customer requirement. We visit the site and design the system as per the site requirement. Our systems re customised to the site conditions.

We fabricate hoods ( MS / SS ) which we mount in a favourable position to collect the smoke and the hood is connected to the blower through Ductings ( Box type / Spiral, moc optional ) and then the smoke is expelled through chimneys / duct. These systems are well suited for heavy welding areas, gauging areas, Foundry shop, furnaces, galvanising tanks, chemical mixing tanks, grinding machines, cement industries etc. Fresh air system can be provided to replace the displaced air through hoods.

Tubular Axial Fan

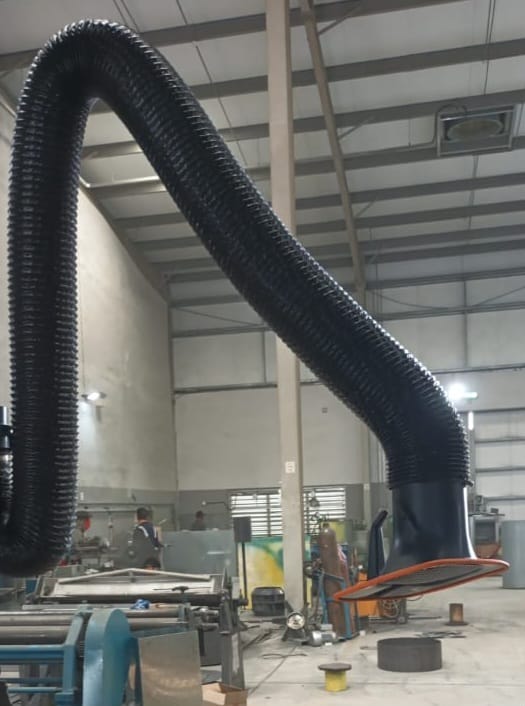

Fume Extraction System

Fume Extraction systems would help great in industries where the process involves harmful fumes.

Tubular Axial Fan

Water Spray Filter System

Dust Collection System

We design, fabricate and install dust collection systems for various scenarios like cement industries, polishing machines, grinding machines, wood joinery, wood saw etc.

We manufacture cyclone separators, dust collectors with filters, bag filters etc.

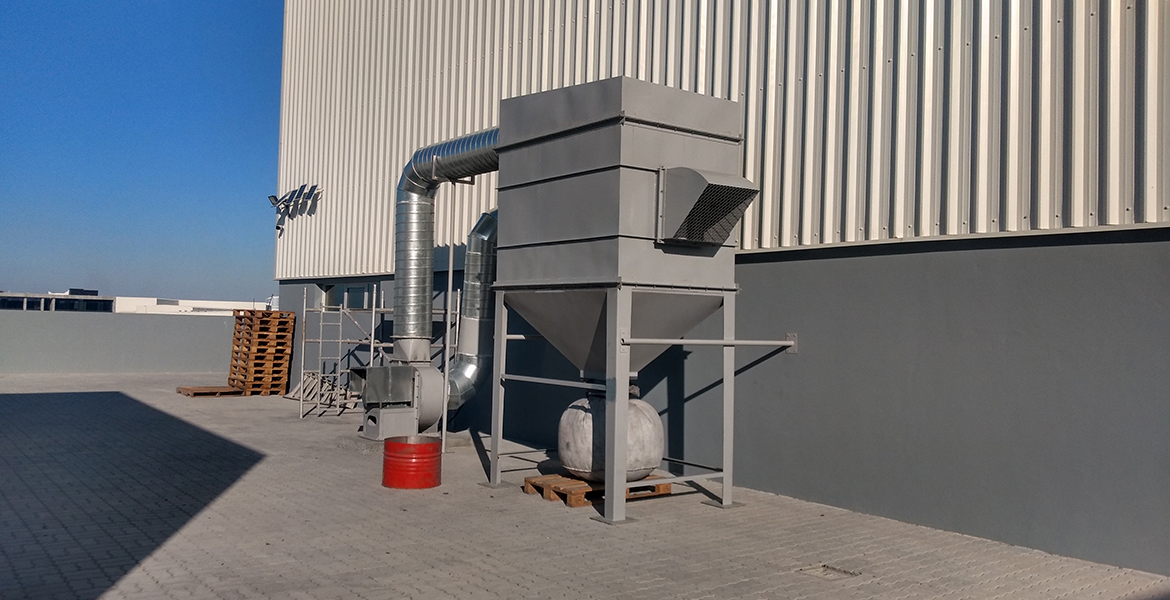

We also manufacture portable dust collectors which are space saving and easy to use. the dust source is connected to the dust collector fan via a rigid flexible duct. The dust is collected in the inflated filter bags connected to the drum. Once full the bags which are clamped can be easily opened and fixed back after removing the dust. The dust collector is also equipped with castor wheels for movement.

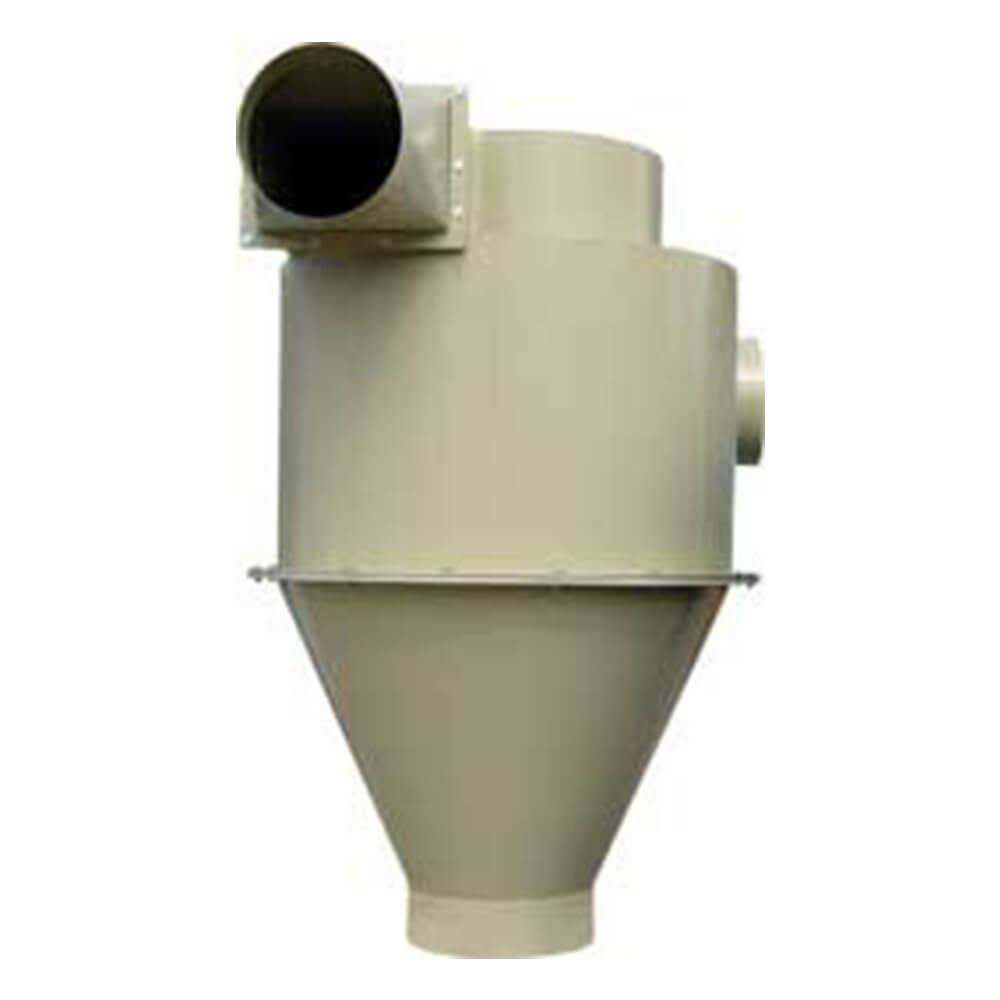

Cyclone Separators

We custom design, fabricate and install cyclone separators for removing particulates from air and gas stream, without the use of filters, through vortex separation.

Water Spray Filter System
Water Spray Filter System

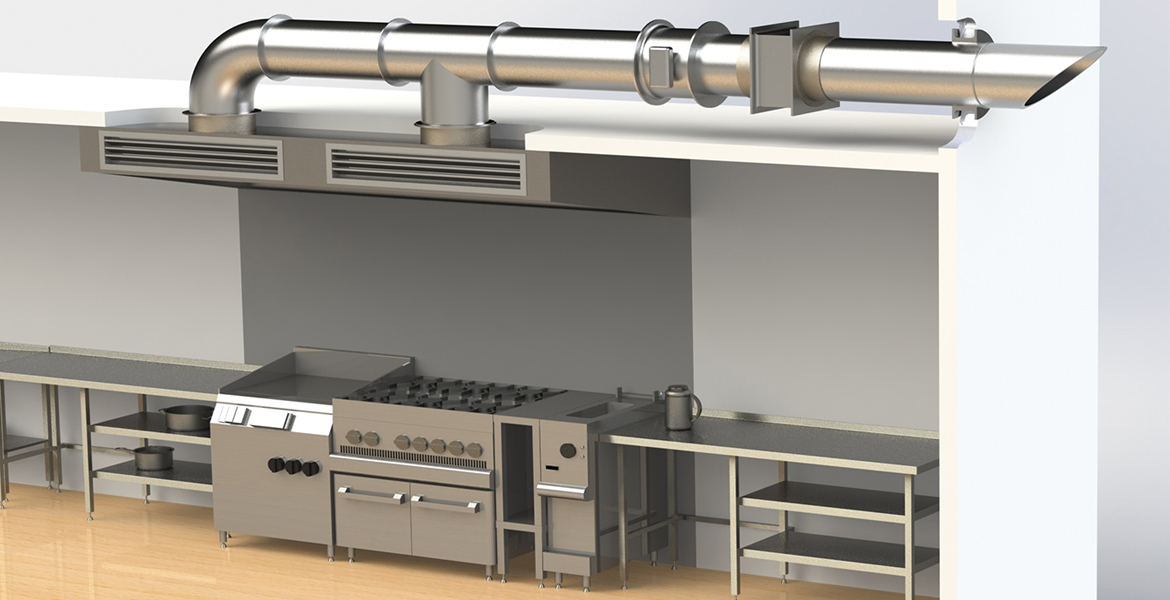

Kitchen Exhaust System

We design, fabricate and install kitchen exhaust systems which are highly efficient and function problem free for long time. The kitchen hoods are placed above the ovens / stoves and are of stainless steel construction of desired finish. \the hoods include oil filters which remove most of the oil from the exhaust air and are collected in oil cups. The ductings are connected via GI ductings to the centrifugal blower installed on the roof. The Blowers are belt driven to isolate the motor from temperature and oil. Grease taps are provided to drain oil and a maintenance door is provided for periodic cleaning and maintenance. Access doors are also provided in the ducting for inspection and periodic cleaning.

The system can be equipped with fresh air system with an additional fan pumping fresh air towards the hood and is dispersed downwards from the hood to recompensate for the displaced air, and also to reduce airconditioning losses.

Water Spray Filter System

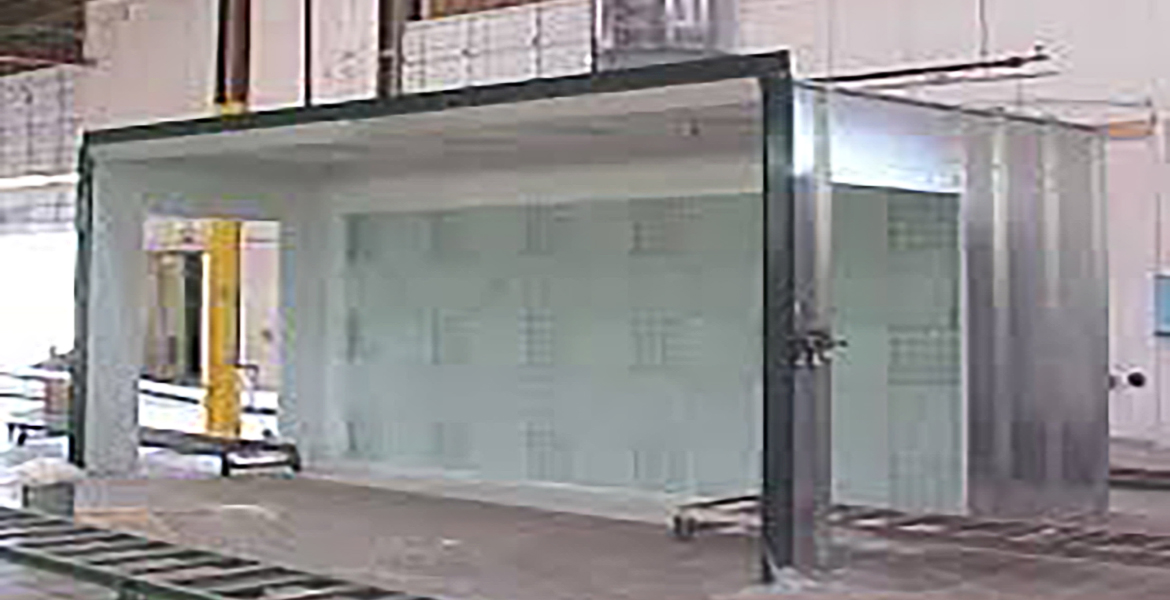

Paint Booths

We offer the full service from fabrication and supply of a simple spray booth to a fully specialized Paint booth enclosure. These enclosures offer the ideal controlled environment for your finishing, curing and drying requirements and prevent these processes contaminating other areas.
